DAS AUDIO ACTION 12A - Aktivni zvučnik
*Cijena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cijenu!
The single D.A.S. Action 12A is a powered, full-range, two-way loudspeaker designed for professional live sound reinforcement applications, and can function as a compact PA or a floor wedge monitor. The built-in Class-D amplifier provides up to 1000W peak output, which drives the 12" woofer and 1" compression driver that combine to provide frequency response of 50 Hz to 20 kHz and a peak SPL output of 131 dB. What's more, the 80º x 50º high-frequency horn can be rotated, adding to the speaker's placement flexibility.

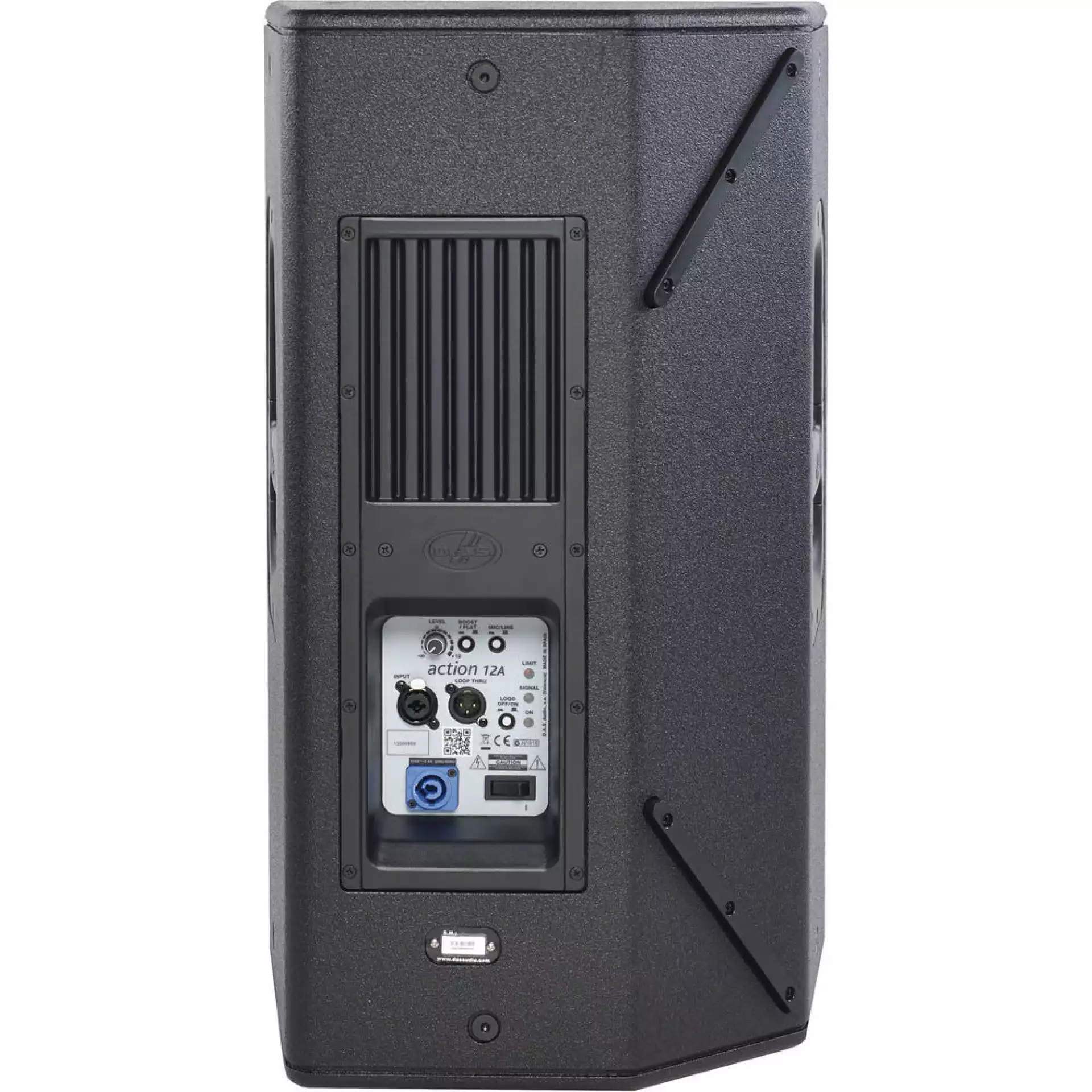

The rear panel of the speaker offers a switchable mic/line level XLR input and an XLR loop-thru output for connecting additional powered speakers. Additionally, the boost EQ switch adds high & low frequencies to the signal, while the two on-board limiters protect the electronics and drivers from overload. The ISO-flex painted birch plywood enclosure offers a flexible, multi-angle design and allows the speaker to double as a floor monitor. Two bar handles are offered for ease in transport, while the steel grille provides ample protection to the loudspeaker's drivers. The D.A.S. Action 12A ships with a power cord.
Compact multi-purpose system with monitor position
Lightweight Class-D amplifier
12" woofer + 1" compression driver with a titanium diaphragm
Switch-mode power supply
1000W peak output
Max SPL: 131 dB
Reduced size and weight
Pole mount socket

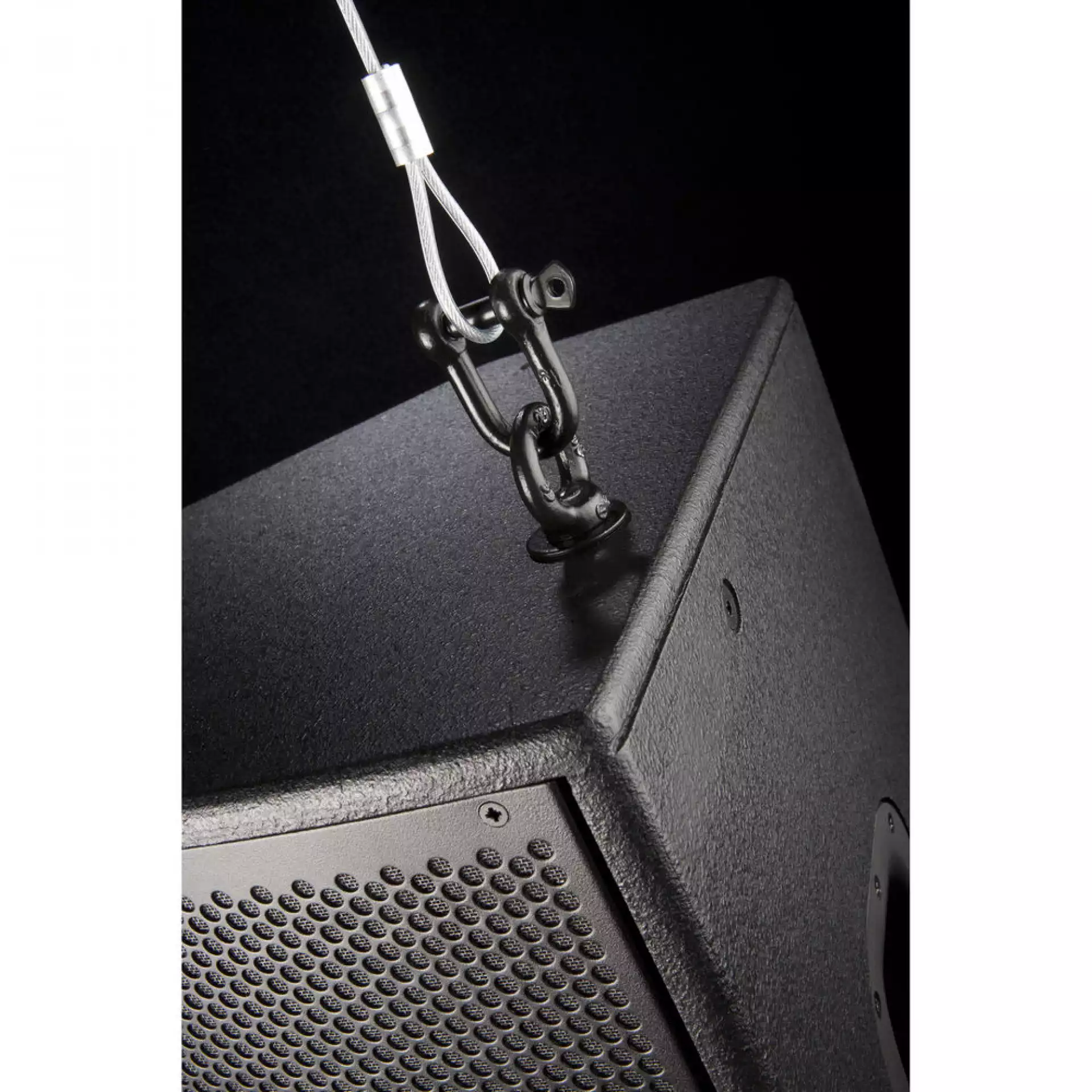

Rigging points
PA Speaker
Configuration Active 2-Way
Total Power Capacity 1000 W Peak
500 W RMS
Amplifier Class Class-D
Drivers
HF Driver 1 x 1" / 2.5 cm Compression Driver
LF Driver 1 x 12" / 30.5 cm Woofer
Performance
Frequency Range 50 Hz to 20 kHz -10 dB
Maximum SPL 131 dB
Coverage Angle 80° H x 50° V (Rotatable Horn)
Input Sensitivity Line Input:
+8 dBu
Mic Input:
-32 dBu
I/O Impedance Line Input:
20 Kilohms
Mic Input:
20 Kilohms
Connectivity
Audio I/O XLR Female Input
XLR Male Thru
Power
AC Input Power 115 VAC, 50 / 60 Hz
AC Power Connector 1 x powerCON Input
Current Consumption 2.4 A
Physical
Construction Material Plywood
Dimensions 25.7 x 14.9 x 12.8" / 653 x 378 x 325 mm
Weight 44 lb / 20 kg
