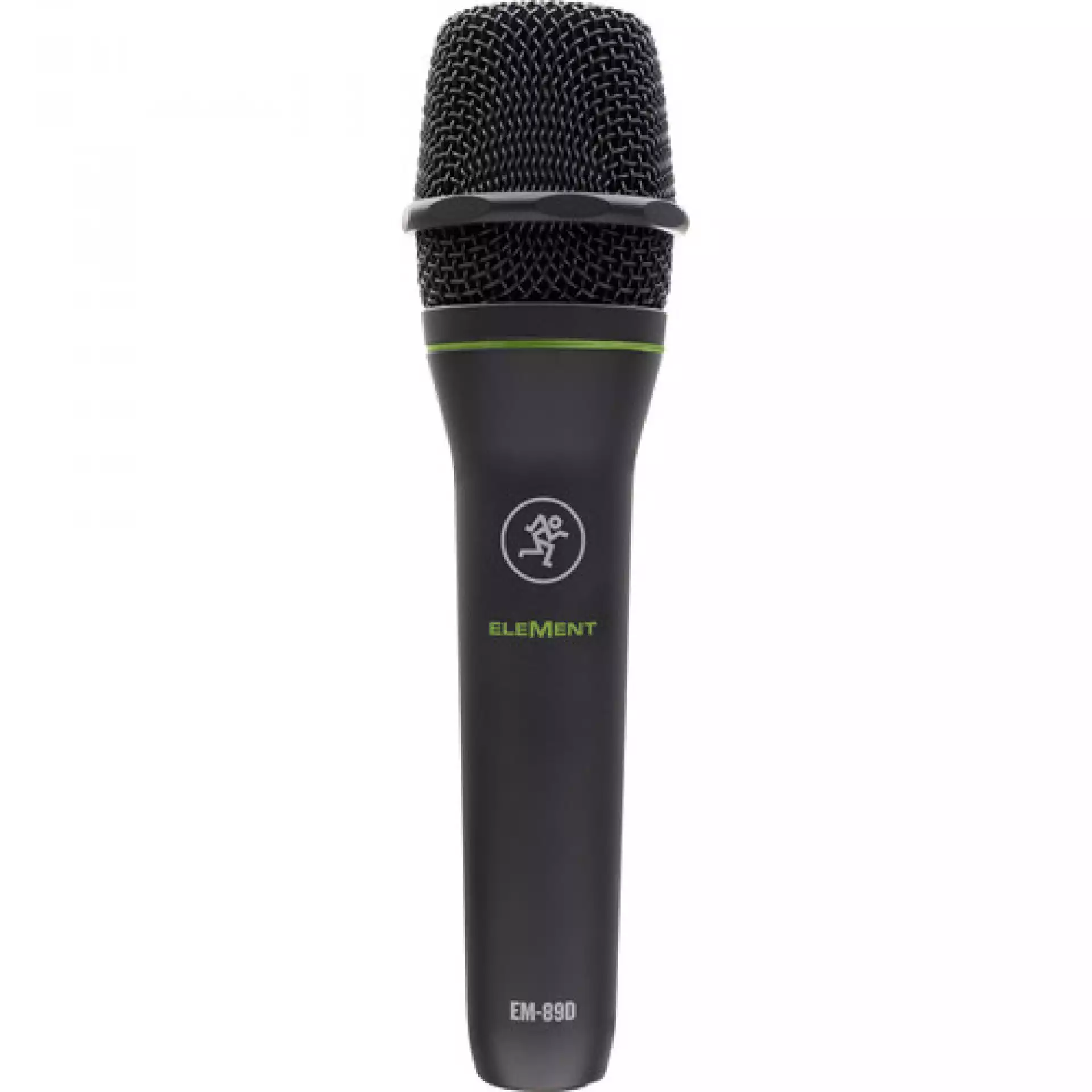

The EM-89D utilizes a cardioid polar pattern, which rejects sound behind the mic to reduce the pickup of stage bleed and allow higher gain before feedback. The mic's dynamic moving-coil design requires no batteries or phantom power, and the balanced 3-pin XLR output ensures proper connectivity with stage boxes, mixers, and portable PA systems. The EM-89D includes a mic clip, an XLR cable, and a zipper pouch.
Mackie EM-89D Specs
Microphone
| Form Factor |
Handheld / Stand/Boom Mount |
| Sound Field |
Mono |
| Operating Principle |
Pressure Gradient |
| Capsule |
1 x Dynamic |
| Polar Pattern |
Cardioid |
| Orientation |
End Address |
| Circuitry |
Solid-State |
| Pad |
None |
| High-Pass Filter |
None |
| Tone Adjustment |
None |
| Indicators |
None |
| On-Board Controls |
None |
| Windscreen |
Built-In |
Performance
| Frequency Range |
50 Hz to 16 kHz |
| Impedance |
600 Ohms ± 30% at 1 kHz |
| Sensitivity |
-52 dBV/Pa at 1 kHz |
Connectivity
| Output Connectors (Analog) |
1 x XLR 3-Pin Male (on Mic) |
| Headphone Connector |
None |
| Number of Conductors |
2 |
Power
| Operating Voltage |
Not Specified by Manufacturer |
Physical
| Color |
Black |
| Mounting |
Mic Clip (Included) |
| Dimensions |
ø: 2 x L: 7.3" / ø: 5.08 x L: 18.54 cm |
| Weight |
0.66 lb / 0.3 kg |
