Specifications

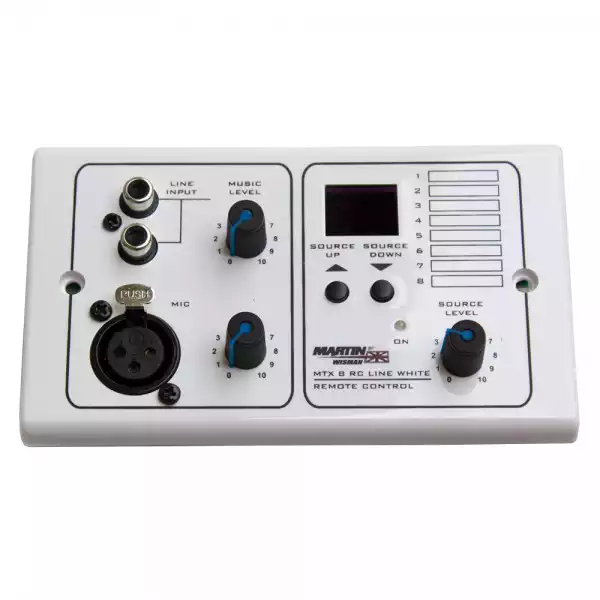

* The MTX 8 RC LINE WHIT remote control with audio input module is connected with MTX 808 through

universal industrial standard CAT 5 for each eight zone's volume adjustment or remote

line and microphone input at a remote and different location from the control center.

* Each controller provides eight RJ45 ports for the remote control with audio input module.

* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also

integration of RS 485 communication, audio transmission and DC 24V power supply together.

* Remote line by dual RCA and mic by XLR inputs with gain controls.

* Zone LED indicator with up/down buttons.

* Volume control is provided for overall output level control.

* DC 24V power supply from controller, low power consumption 5W.

* Extra DC 24V power supply is needed when communication distance is more than 50 meters.

* Analog to digital conversion working principle to adjust controller's volume.

* Metal mounting box is supplied.
