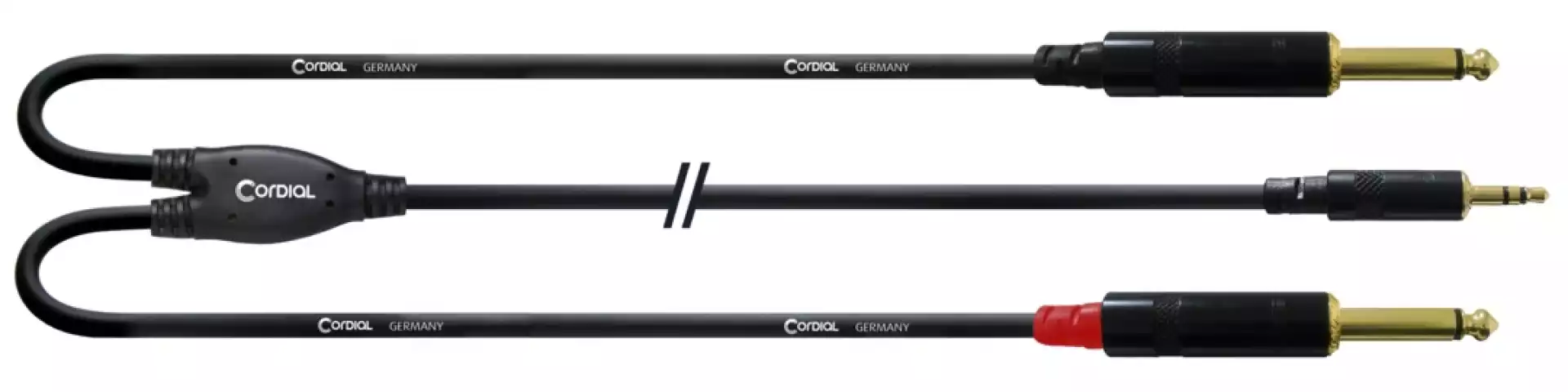

The CFY VPP Y adapter cable with 1x 6.3 mm stereo jack plug to 2x 6.3 mm mono plug is a very popular tool, for example, for transmitting a signal from a mixing console to a keyboard.
The split at both ends is about 15 cm long and the individual ends are clearly marked in red and black. Its REAN by Neutrik® connectors are hand soldered and gold plated (to prevent corrosion). The cross section of the utilized bulk cable is 2x 0,22 mm ².
cable essentials cable 1
Jacket PVC
cable assign VPP
connector brand REAN ®
plugs
1 1/4" Plug stereo
2 1/4" Plug mono
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 80 Ohm/km
Shielding spiral shield (90% coverage)
Capacity cond.-cond. (pF/m) < 80 pF/m
category Microphone
diameter 5.9 ± 0.2 mm
Conductor isolation LDPE
