Neutrik NAC3FXXA-W-S-D powerCON
Šifra: 18146
Na stanju
Regularna cijena:
19,00 KM
14,00 KM (Bez PDV-a)
Cijena sa popustom * :
Cijena za kupovinu na rate:
16,00 KM
*Cijena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Iznos rate:
Ušteda :
3,00 KM
Prijavi povoljniju cijenu
Prikazana cijena je za komad.
Garantujemo najnižu cijenu!

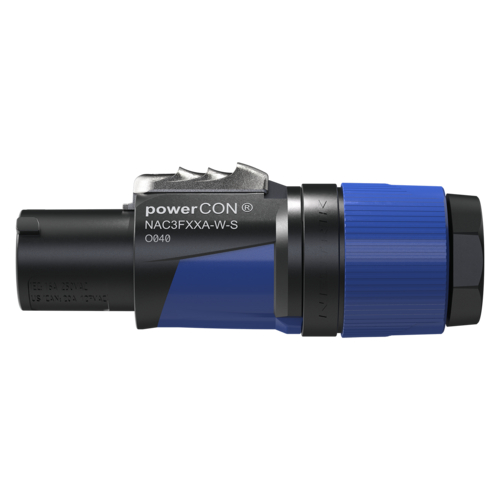

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm.
The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
| Product | |
| Title | NAC3FXXA-W-S |
| Connector series | powerCON blue/grey |
| Electrical | |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | > 3 kVac (after mating cycles) |
| Insulation resistance | > 10 GΩ (initially) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC, CBC |
| Rating USA / Canada | cUL 60320-1: 20 A 127 V AC, CBC |
| Mechanical | |
| Cable O.D. | 6 - 12 mm |
| Lifetime | Typically 5’000 mating cycles |
| Wiresize (mm²) | 1.5 – 2.5 mm² |
| Wiresize (AWG) | 16 – 12 AWG |
| Locking device | Twist lock |
| Termination | Screw type terminals |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking element | Zinc diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Environmental | |
| Temperature range | -33 °C to +80 °C |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
