Circuit: Analog
Bypass: Buffered Bypass
Audio: Mono

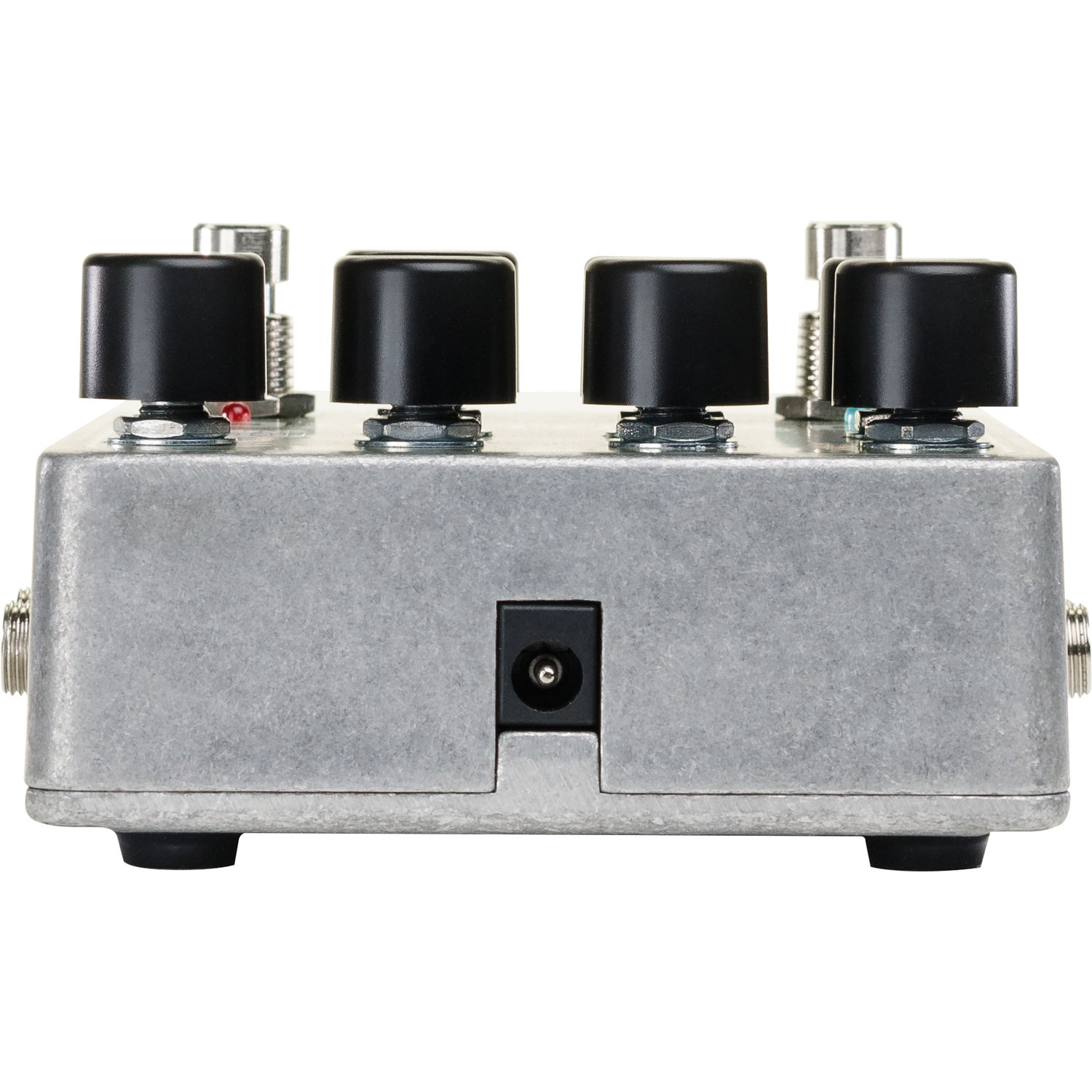

Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4.13 x 2.25
Current Draw: 90mA
Year Released: 2017

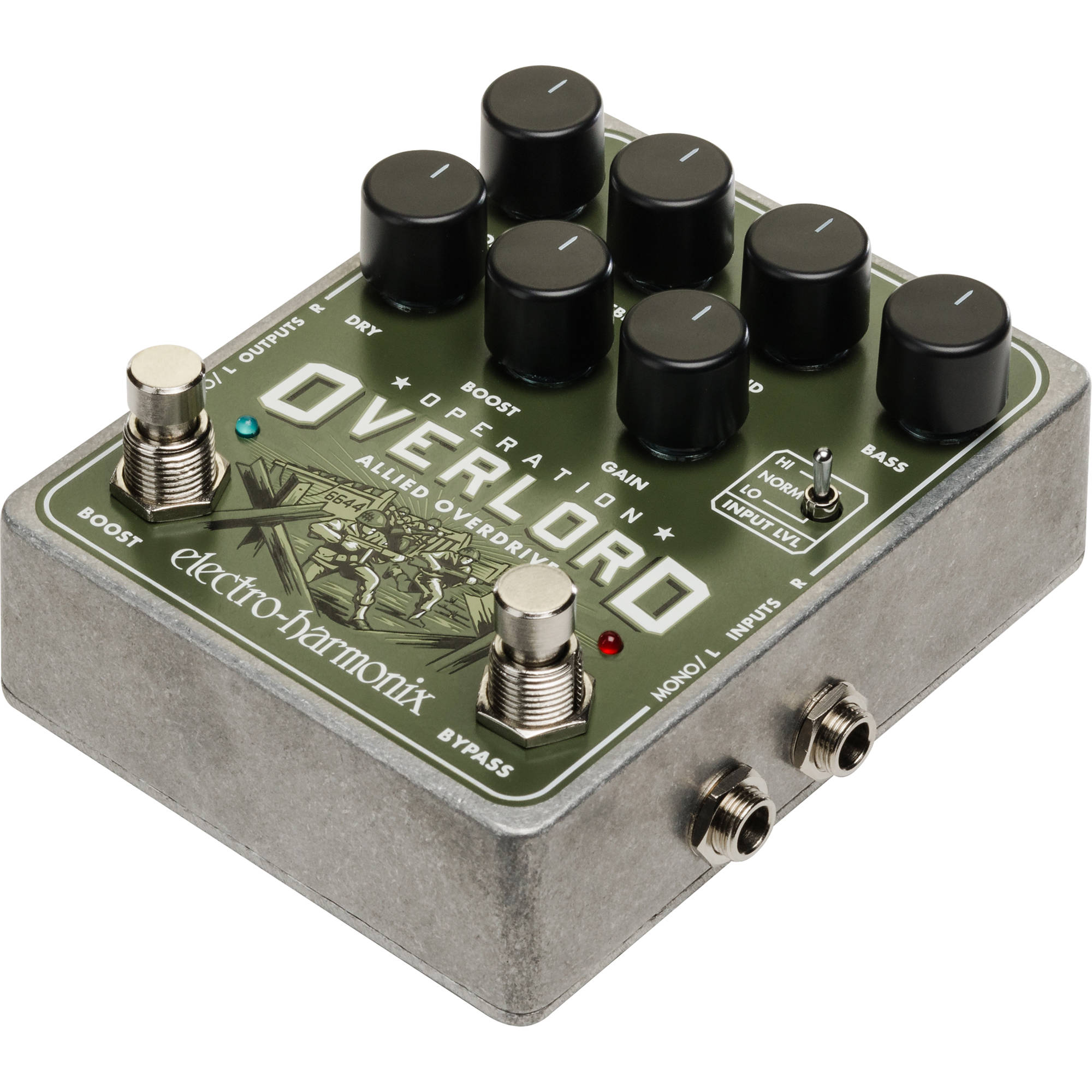

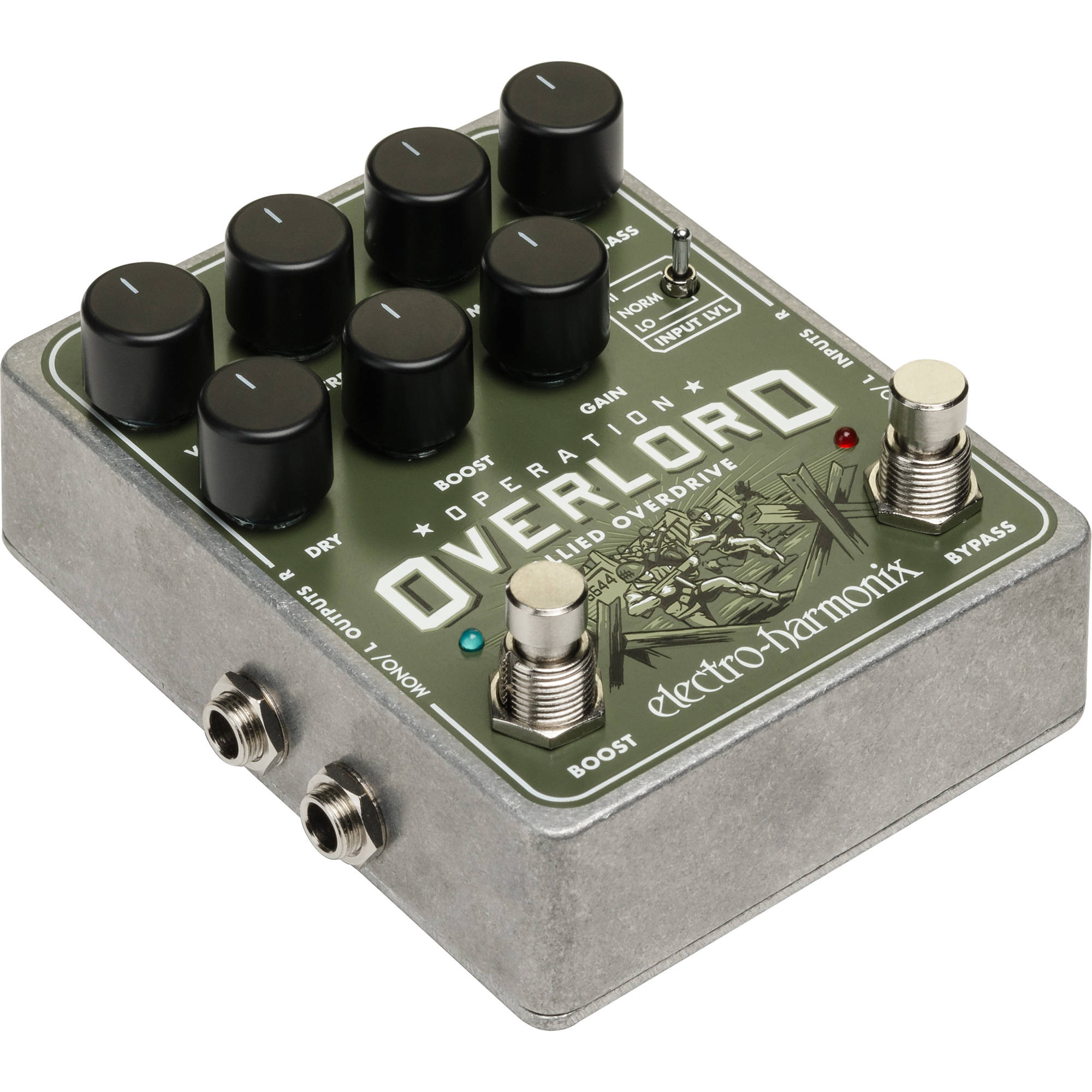

With the EHX Operation Overlord Allied Overdrive, whether you play guitar, bass, keyboards or pretty much any electronic instrument — dialing in great drive sounds is fast and foolproof.

Active 3-band EQ controls, footswitchable BOOST mode, and a dry blend provide versatility for different tones and instruments. The OVERLORD also features two independent distortion channels for use with stereo setups.

Whatever your rig, the Overlord is your indispensable ally.

    Silent foot-switchable Normal and Boost modes deliver distortion ranging from mild to saturated
    Normal mode uses three JFET gain stages for tube amp-style response and tone
    Boost mode adds a classic pedal-type overdrive circuit before the JFET stages
    Three-position switch lets the user select the proper input level for their instrument. It’s great with guitar, bass, keyboards…
    Active Treble, Mid and Bass controls, plus a Dry blend, for total tone shaping

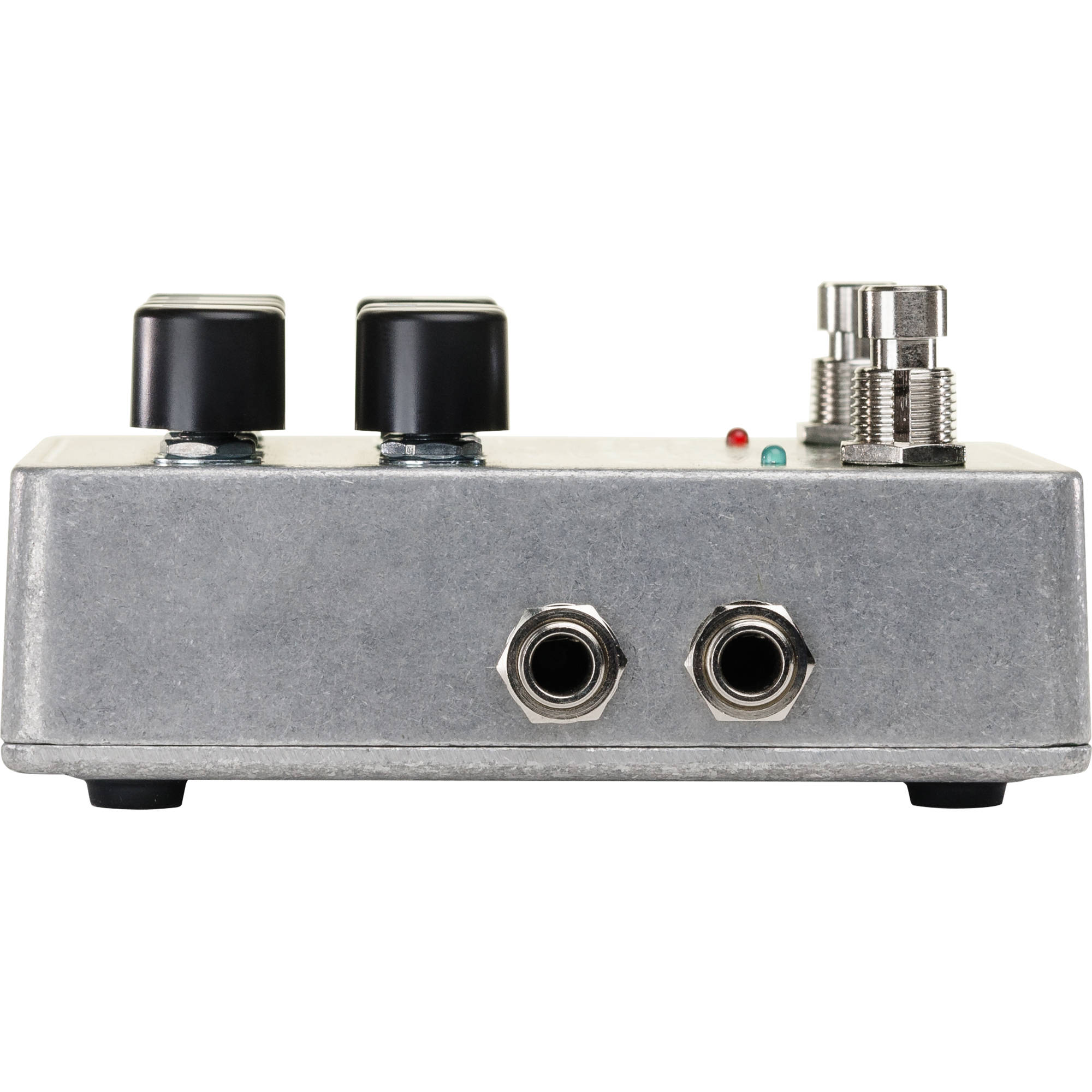

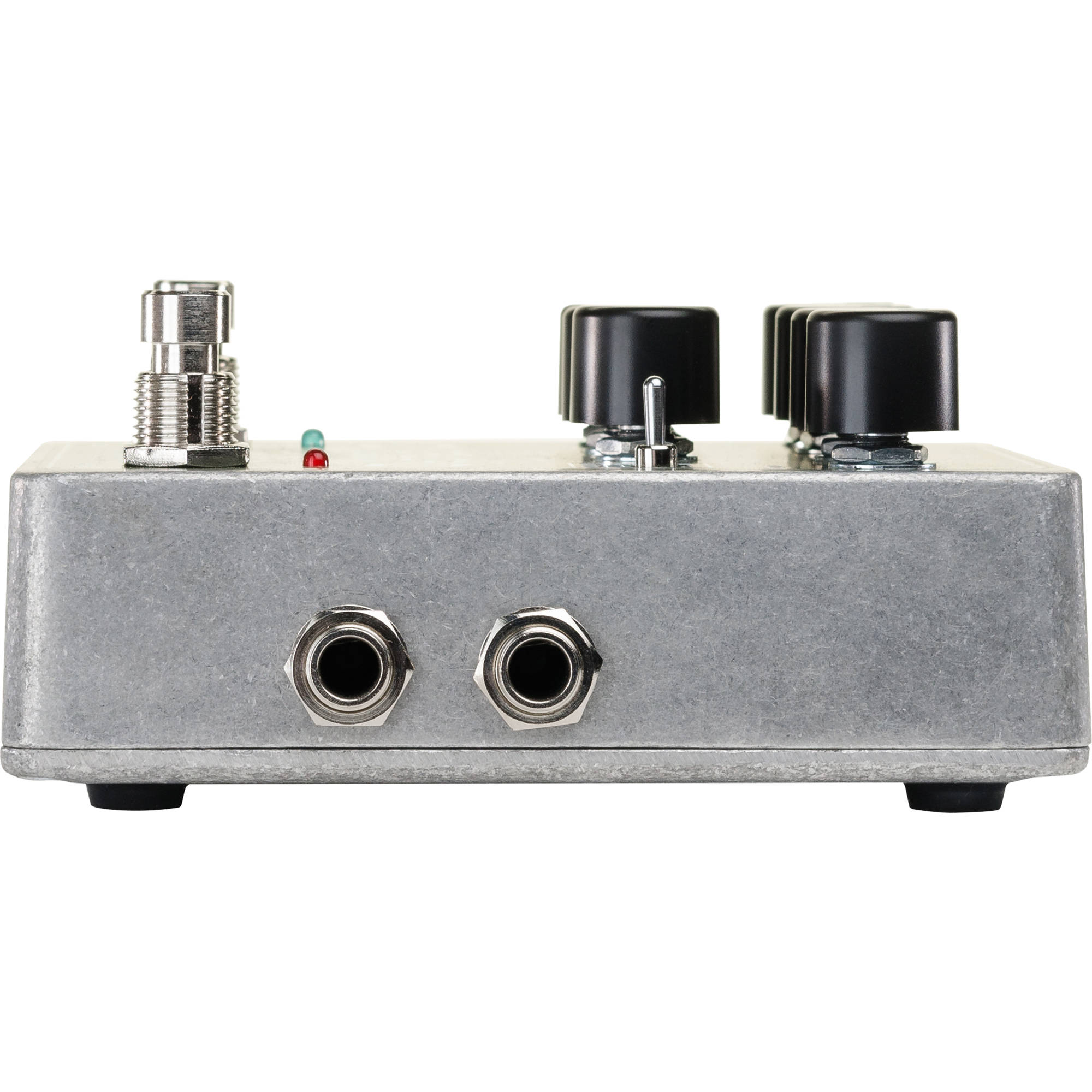

    Fully stereo capable, equipped with left and right 1/4” input and output jacks
    Power supply included
