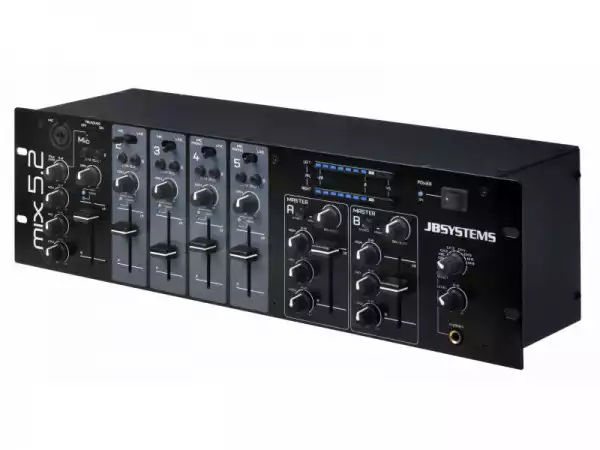

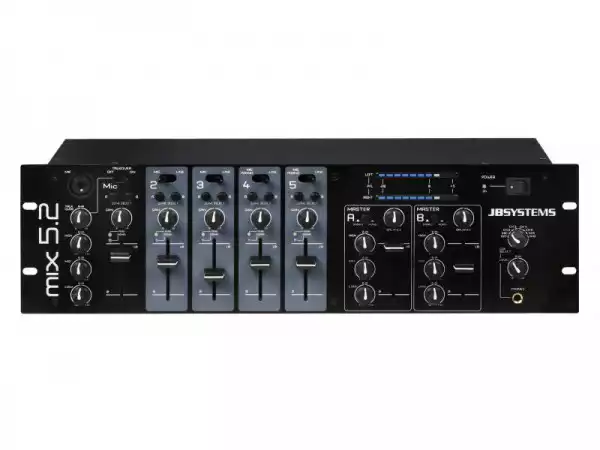

Description

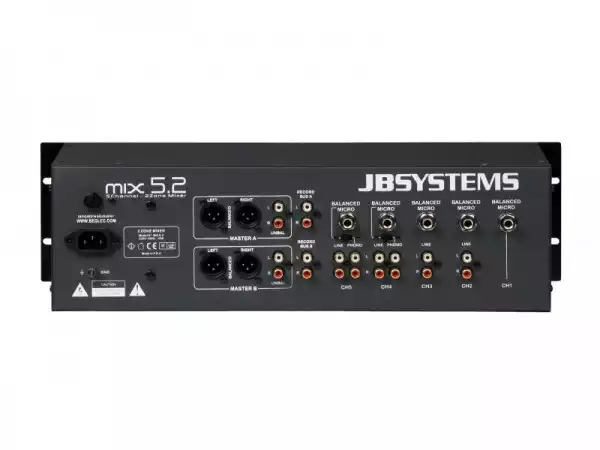

• 2 Independent Zones, each with balanced XLR-output (+unbalanced on cinch)
• Each zone has 3band tone controls, balance, volume and mono/stereo switch
• 11 inputs on 5 Channels (5 balanced mic + 4line + 2phono)
• 1Microphone with 3band tone control and zone assignable adjustable talkover.
• Every Channel can be assigned to zone A, zone B or both.
• Every Channel has individual peak and signal present leds.
• Gain levels and 45mm faders on all channels
• PFL with rotary selector, cue level adjustment and 6.3mm headphones jack.
• 2 independent record outputs without Channel1 microphone and free from talkover muting

Technical Information

• Mic Input 1,5mV/10kOhm
• Phono Input 3mV/47kOhm
• Line Input 150 mV/22 kOhm
• S/N Ratio >85 dB/1 kHz
• Master A/B Output 1,5V/4 kOhm unbalanced
• 850mV/600 Ohm balanced
• Frequency Response20-20.000 Hz (±2dB)
• Tone Control -12 dB, +12dB Phones 1V/32 Ohm
• Dimensions (mm) 134/H x 483/W x 130/D (19"/3U)
