Contestage AGQUA-05 blk
Šifra: 17595
683,00 KM
584,00 KM (Bez PDV-a)
Iznos rate:
Prikazana cijena je za komad.
Garantujemo najnižu cijenu!
Angle Quatro
3 directions 90° – Black finish
Supplied with 2x connection kits
– 50 mm tubes
– 16 mm threads
– Square section of 240 mm between each tube (290 mm outside)
– Taper pin and key assembly
– Angle – 3 directions: 90
– Use: horizontal or vertical connection

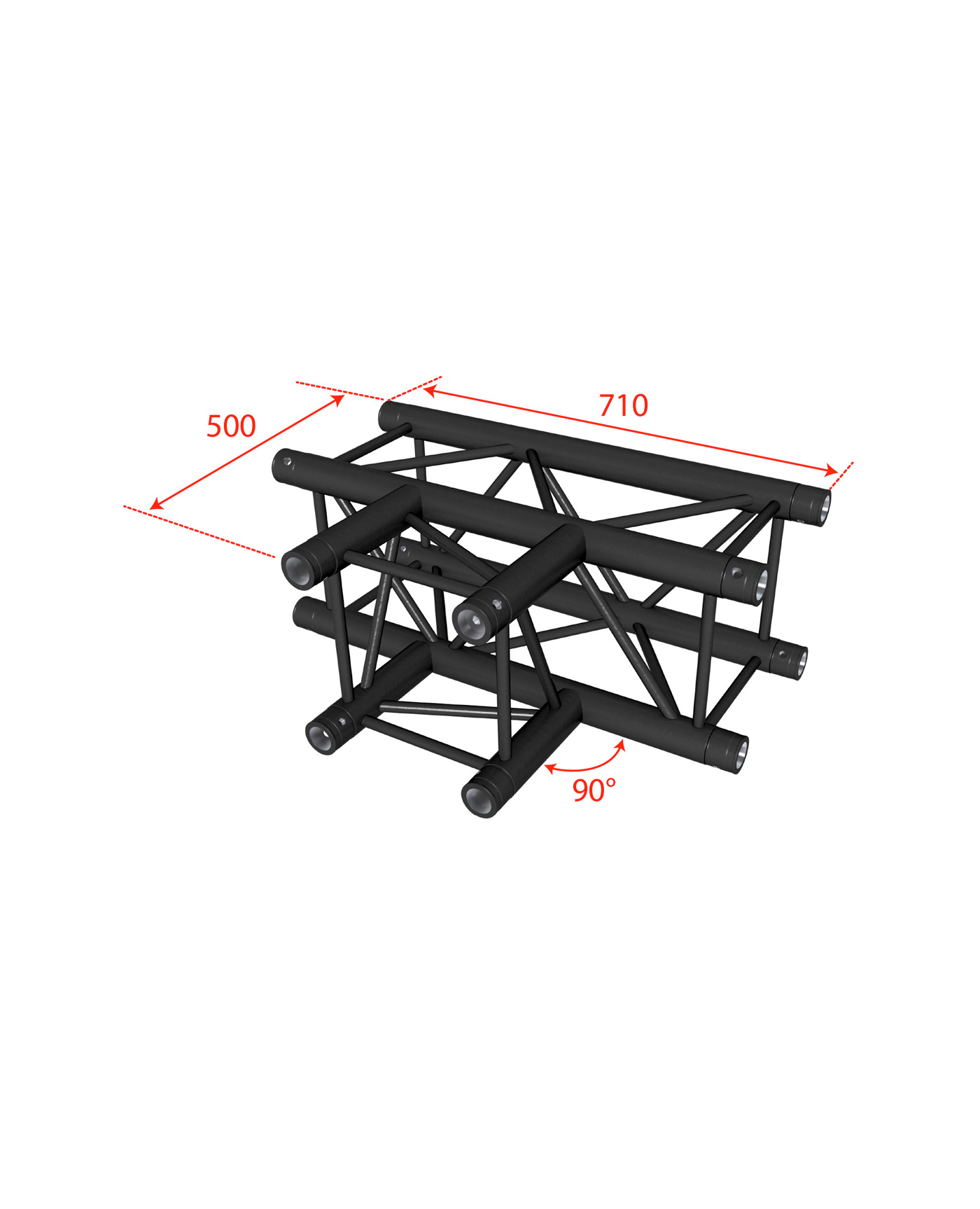

– Maximum dimensions: 71 cm x 50 cm
Manufactured to ISO DIN 4113 and TÜV standards.
Aluminum alloy structure (EN AW 6082 T6) of 50 mm diameter and 2 mm thickness.
Square section to support larger loads, assembled with conical sleeves.
